Earl's Super Stock Hose Ends

Super Stock™ Hose Ends

Super Stock^TM push-on hose ends are designed to be an attractive and lightweight direct replacement for the popular and economical brass push lock type. Machined from aluminum alloy and anodized in the familiar red and blue made famous by Earl's, they are available in all common AN 37° flare configurations and, as straight hose ends, with male NPT threads.

Designed to be used with our Super Stock^TM hose, these hose ends are not intended for use with stainless braid-protected hoses or Pro-Lite 350^TM. While basically meant for street and marine applications, Super Stock hose and hose ends have found favor with professional racers and in limited production OEM applications.

NPT SIZE	A.N. FITTING SIZE	HOSE NO.	HOSE SIZE	TYPICAL APPLICATION
1/8	4	4	1/4	Fuel Lines, Fuel and Oil Pressure Gauges
1/4	6	6	3/8	Fuel, Remote Oil Filter Lines
3/8	8	8	1/2	Dry Sump, Remote Oil Filter Lines

NPT SIZE A.N. FITTING
SIZE HOSE
NO. HOSE
SIZE TYPICAL
APPLICATION
1/8 4 4 1/4 Fuel Lines, Fuel and Oil Pressure Gauges

1/4 6 6 3/8 Fuel, Remote Oil Filter Lines

3/8 8 8 1/2 Dry Sump, Remote Oil Filter Lines

Assembly instructions for Auto-Crimp hose ends can be found in Earl's Technical Section. See instructions for Auto-Mate with Econ-O-Fit or Auto-Crimp.

Note: Because we deal predominately with motorcycles, we usually only stock -3, -4, and -6 sizes. We can special order anything Earl's offers.

Also see, the Crimping Tool, the Crimping Wheel and the Tube-Mate Grooving Wheel.

	Part Number	Description	Racer Price
Straight A.N.
	40-700145ERL	Earl's 1/4 ID	$5.09
	40-700167ERL	Earl's 3/8 ID	$5.09
	40-700109ERL	Earl's 1/2 ID	$6.01

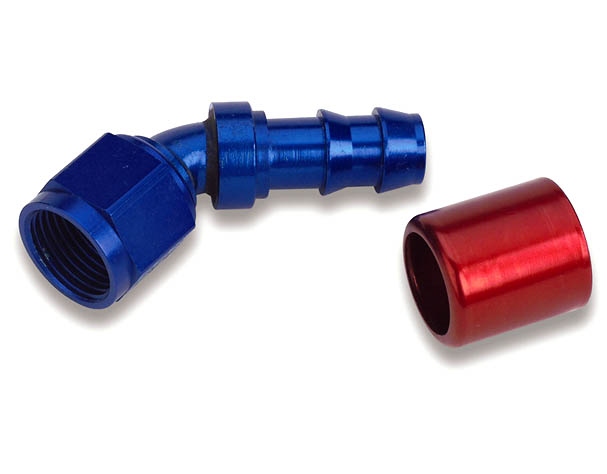

45° Bend, A.N.
	40-704645ERL	Earl's 1/4 ID	$19.56
	40-704667ERL	Earl's 3/8 ID	$19.56
	40-704609ERL	Earl's 1/2 ID	$26.41
90° Bend, A.N.
	40-709145ERL	Earl's 1/4 ID	$19.56
	40-709167ERL	Earl's 3/8 ID	$19.56
	40-709109ERL	Earl's 1/2 ID	$26.41
120° Bend, A.N.
	40-712045ERL	Earl's 1/4 ID	$19.56
	40-712067ERL	Earl's 3/8 ID	$21.55
	40-712009ERL	Earl's 1/2 ID	$29.34

	Part Number	Description	Racer Price
150° Bend, A.N.
	40-715045ERL	Earl's 1/4 ID	$19.56
	40-715067ERL	Earl's 3/8 ID	$21.55
	40-715009ERL	Earl's 1/2 ID	$29.34

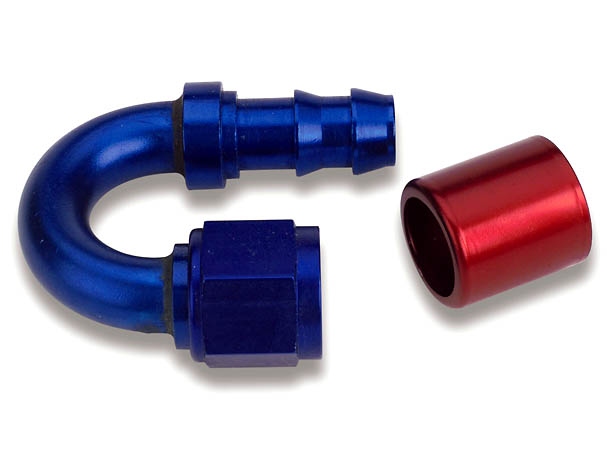

180° Bend, A.N.
	40-718045ERL	Earl's 1/4 ID	$19.56
	40-718067ERL	Earl's 3/8 ID	$21.55
	40-718009ERL	Earl's 1/2 ID	$29.34
Male Pipe Thread, NPT
	40-720142ERL	Earl's 1/4 ID	$4.08
	40-720164ERL	Earl's 3/8 ID	$5.54
	40-720186ERL	Earl's 1/2 ID	$7.15
Replacement Sleeves
	40-798045ERL	Earl's -4	$2.5
	40-798067ERL	Earl's -6	$2.5
	40-798009ERL	Earl's -8	$3

Earl's Super Stock hose ends are designed to be used with Earl's Super Stock hose. They cannot be used with stainless steel braid protected hose. On applications where the maximum temperature range is expected, compression of the Super Stock collar is required.

All parts sold by MPS are for off road closed course use. They are not intended for use on public streets or highways.
