MPS Electric Air Valves
- Small Sizes

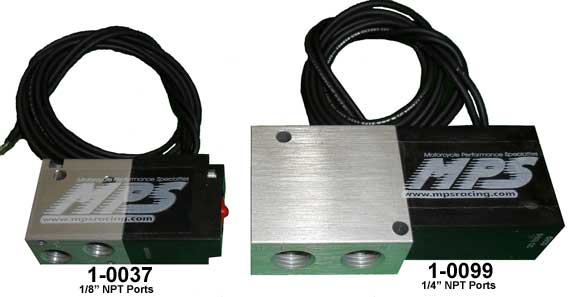

- 2.43" x 1.31" x .75" (1-0037 standard valve)
- 3.75" x 1.75" x 1.0" (1-0099 large valve)
- Low Current Draw
- 1/8" or 1/4" NPT Thread Ports
- 3 Way Operation
- 1 is IN, 2 is OUT and 3 is EXHAUST
- Industry Standard Valves
The high volume big air valve (1-0099) is a must when using the larger air cylinder and 3/8 lines. All ports are female 1/4 NPT. The standard size air valve (1-0037) are for use with Jr. (1 1/16" bore) size cylinders.
MPS strongly recommends installing an inline air filter to keep debris out of your air valve. The all-anodized, lightweight (.08 lbs) aluminum housing is compact (2.3" length, .75" diameter) and can be used directly before the air valve. The element is 40 micron, which insures minimum pressure drop.
|
Part Number |
Description | Racer Price | |
|---|---|---|---|
|
1-0037 |
MPS Electric Air Valve 1/8'' NPT |
$56.59 |
|
|
1-0099 |
MPS Electric Air Valve 1/4'' NPT |
$121.95 |
|
|
1-0197 |
MPS Air Filter 1/8'' NPT Inline |
$15.75 |
|
|
1-0197-1 |
MPS Air Filter 1/4'' NPT Inline |
$15.75 |
|
