MPS Fittings & Line

1-0312 Female Fitting1-0042 Straight Fitting1-0040 90 Fitting1-0454 MPS 90° Poly Push in Union 1/4'' MPS Filler Valve

1-0388 1/8" Union1-0453 Y Fitting1-0123 T Fitting1-0041 Run Tee1-0835 Male Branch Tee

1-0376 hose barb1-0458 hose barb1-0789 MPS Brass 90° 1/8'' NPT Male x 1/8'' NPT Male 1-0767 MPS Brass Run Tee 1/8'' MNPT x 1/8'' FNPT x 1/8'' FNPT1-0536 MPS Brass 90° 1/8'' NPT Male x 1/8'' NPT Female 1-0954 1/8'' MNPT x 1/8'' FNPT Reducer1-0411 1/8" hex nipple1-0412 1/8" coupling1-0413 1/8" hex plug

Can't Beat These Slick Push Fittings!

In-line connection of tubing to a threaded port. External tightening with a flat spanner or a socket wrench, internal MPS 1/4" Poly Lineadjustment with an Allen wrench.



MPS Inline Air Filter



MPS strongly recommends installing an inline air filter to keep debris out of your air valve. The all-anodized, lightweight (.08 lbs) aluminum housing is compact (2.3" length, .75" diameter) and can be used directly before the air valve. The element is 40 micron, which insures minimum pressure drop.

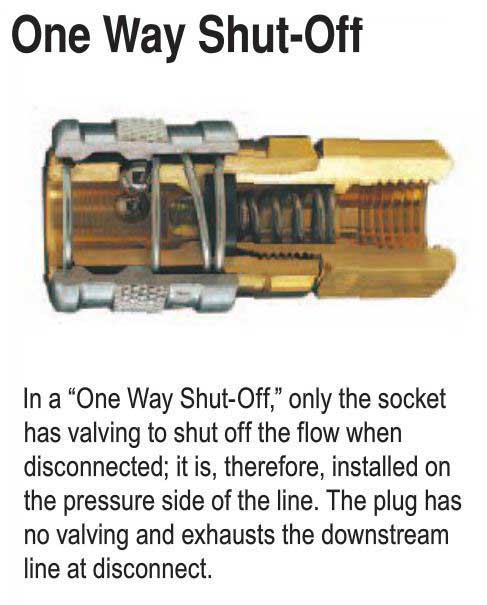

1-0713 Inside View1-0714 plug 1-0713 MPS socket1-0715

Part Number

 Description Racer Price

1-0007

 MPS Air Line 1/4'' Poly (Per Foot)

$0.87

1-0355

 MPS Air Line 3/8'' Poly Line

$0.87

3-16250NOS

 NOS 1/8'' x 5' Roll Poly Line

$32.66

3-16255NOS

 NOS 1/8'' X 10' Roll Poly Line

$35.50

3-16258NOS

 NOS 1/8'' X 15' Roll Poly Line

$53.99

3-16260NOS

 NOS 1/8'' X 20' Roll Poly Line

$63.95

1-0275

 MPS Straight Push in Fitting 1/16'' NPT x 1/8'' Poly

$8.35

1-0637

 MPS Straight Push in Fitting10-32 Male x 1/8'' Poly

$7.51

1-0193

 MPS Straight Push in Fitting 10-32 Male x 1/4'' Poly

$8.51

1-0114

 MPS Straight Push in Fitting 1/8'' NPT x 1/8'' Poly

$5.20

1-0421

 MPS Straight Push in Fitting 1/8'' N P T Female X 1/8'' Pol

$7.39

1-0042

 MPS Straight Push in Fitting 1/8'' NPT x 1/4'' Poly

$7.05

1-0312

 MPS Straight Push in Fitting 1/8'' NPT Female x 1/4'' Ploy

$7.51

1-0088

 MPS Straight Push in Fitting 1/8''NPT X 3/8'' Poly

$9.72

1-0192

 MPS Air Filler Fitting - Nickel Plated Brass and TPMS Compatible Metal Cap

$6.93

1-0197

 MPS Air Filter 1/8'' NPT Inline

$15.75

1-0197-1

 MPS Air Filter 1/4'' NPT Inline

$15.75

1-0717

 MPS Straight Push in Fitting 1/4''NPT x 1/4'' Poly

$7.51

1-0438

 MPS Straight Push in Fitting 1/4'' NPT Female X 1/4'' Poly

$8.09

1-0356

 MPS Straight Push in Fitting 1/4'' NPT x 3/8'' Poly

$6.35

1-0749

 MPS 90° Push in Fitting 10-32 X 1/8'' Poly

$10.97

1-0437

 MPS 90° Push in Fitting 10-32 X 1/4'' Poly

$10.97

1-0898

 MPS 90° Push in Fitting 1/8'' NPT Female X 1/8'' Poly

$10.50

1-0797

 MPS 90° Push in Fitting 1/8'' NPT x 1/8'' Poly

$5.25

1-0897

 MPS 90° Push in Fitting 1/8'' NPT Female X 1/4'' Poly

$10.50

1-0040

 MPS 90° Push in Fitting 1/8'' NPT x 1/4'' Poly

$5.20

1-0718

 MPS 90° Push in Fitting 1/4''NPT x 1/4'' Poly

$7.51

1-0387

 M P S 90° Push in Fitting 1/4'' NPT X 3/8'' Poly

$9.12

1-0388

 MPS Straight Poly Push in Union1/8''

$5.20

1-0455

 MPS Straight Poly Push in Union 1/4''

$5.20

1-0454

 MPS 90° Poly Push in Union 1/4''

$6.93

1-0324

 MPS Tee Poly Push in Fitting1/8''

$8.66

1-0123

 MPS Tee Poly Push in Fitting1/4'

$7.51

1-0041

 MPS Tee 1/4'' Poly Push in Fitting 1/8'' NPT on the Run

$9.26

1-0835

 MPS Tee 1/4'' Poly Push in Fitting Male Branch1/8'' NPT

$9.21

1-0441

 MPS Tee Poly Push in Fitting Unequal 3/8'' x 3/8'' x 1/4

$15.23

1-0636

 MPS Y Poly Push in Fitting 1/8''

$8.66

1-0453

 MPS Y Poly Push in Fitting1/4''

$6.93

1-0635

 MPS Cross Poly Push in Fitting 1/4''

$13.86

1-0411

 MPS Brass Hex Nipple 1/8'' NPT

$2.89

1-0412

 MPS Brass Coupling 1/8'' NPT

$2.89

1-0954

 MPS Brass Bushing 1/4'' to 1/8'' Reducer

$2.89

1-0413

 MPS Brass Hex Plug 1/8'' NPT

$2.31

1-0536

 MPS Brass 90° 1/8'' NPT Male x 1/8'' NPT Female

$4.62

1-0789

 MPS Brass 90° 1/8'' NPT Male x 1/8'' NPT Male

$7.35

1-0767

 MPS Brass Run Tee 1/8'' MNPT x 1/8'' FNPT x 1/8'' F

$8.40

1-0458

 MPS Brass Hose Barb 1/8'' NPT x 1/4'' Hose

$5.25

1-0755

 MPS Brass Hose Barb 1/8'' NPT x 5/16'' Hose

$7.88

1-0375

 MPS Brass Hose Barb 1/4'' NPT x 5/16'' Hose

$7.35

1-0376

 MPS Brass Hose Barb 1/4'' NPT x 3/8'' Hose

$5.78

1-0468

 MPS Brass 90° Hose Barb 1/4'' NPT x 3/8'' Hose

$11.79

1-0504

 MPS Flare Jet Holder 1/8' NPT x -3AN

$6.93

1-0713

 MPS One Way Shut-off Quick Disconnect Socket 1/8'' NPT Male

$8.40

1-0714

 MPS One Way Shut-off Quick Disconnect Plug 1/8'' NPT Male

$4.20

1-0715

 MPS One Way Shut-off Quick Disconnect Plug 1/8'' NPT Female

$4.72

1-0716

 MPS One Way Shut-off Quick Disconnect Plug 1/4'' Poly Line

$6.30
